🔄 Centrifugal Pump Impeller & Slip Factor

Size centrifugal pump impellers: Wiesner & Stodola slip factor, Euler head, metric specific speed Ns, backward-curved vanes, and shaft power demand.

⚡ Fortran 90 Engine Double Precision (IEEE 754) ✓ ISO / ASME Validated

Turbomachinery

📊 Solver Telemetry ● ACTIVE

👁️ Views 16

⚡ Solves 14

💾 Downloads 462 📦 Fortran Code 5.2 KB

📅 Released Jun 2026

⏱️ Latency < 1 ms

💡 Hardware & Sizing Partner: Need to size a control valve or check ASME flange bolt torque for this line?

FLOWKS IEC 60534 Sizer ↗ • API 6D Valve Catalog →

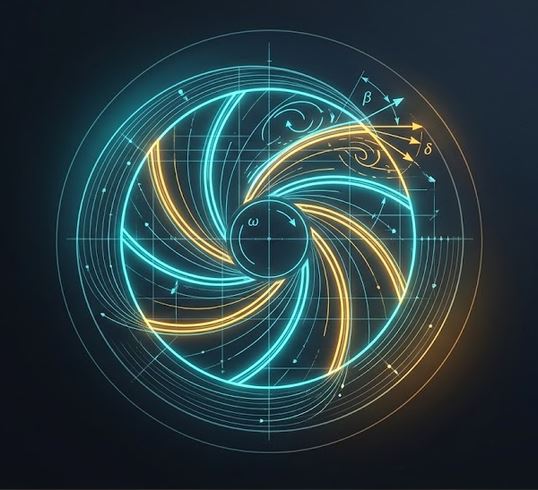

🔄 Centrifugal Pump Impeller & Backward-Curved Vanes

Real-time visual kinematics: Eye suction, backward curved vanes, relative slip flow, and discharge

📝 Configuration & Presets

💧 Water Booster Pump ⚡ Boiler Feed Stage (BFP) 🧪 Chemical ISO 2858 🚽 Wastewater Mixed-Flow

🌊 Hydraulic Duty & Liquid

Discharge Flow Q [m³/h]:

Head Target H [m]:

Pump Speed N [rpm]:

Liquid Density ρ [kg/m³]:

📐 Impeller Vanes Geometry

Tip Diameter D₂ [mm]:

Exit Width b₂ [mm]:

Blade Exit Angle β_2b [deg]:

Number of Vanes Z:

Hydraulic Efficiency η_h:

Wiesner & Euler Pump Formulation:
• Wiesner Slip Factor: σ = 1 − √(sin β_2b) / Z^0.70
• Real Euler Head: H_e = (U₂ · [σ · U₂ − V_r2 · cot β_2b]) / g
• Actual Delivered Head: H = η_h · H_e [m]
• Metric Specific Speed: N_s = N · √Q_m³/s / H^0.75.

📊 Performance Results

Configure inputs and click Compute to view results.

📘 Calculation Methodology & Pump Impeller Standards

Slip Factor Phenomenon (Wiesner & Stodola)

Because the number of vanes is finite, relative eddy circulation within the blade passages causes fluid to leave at an angle flatter than the physical blade angle $\beta_{2b}$, reducing the actual Euler head.

Specific Speed & Impeller Topology

Specific speed $N_s$ determines the optimal impeller geometry: radial impellers for high head and low flow, mixed-flow for intermediate duties, and axial propellers for high flow low head.

Key Engineering Assumptions

Wiesner empirical slip formulation $\sigma = 1 - \sqrt{\sin \beta_{2b}}/Z^{0.7}$.
ISO 9906 hydraulic acceptance grade modeling.
Widely used in water utilities, boiler feed pumps, and chemical processing.
