🌀 Centrifugal Pump NPSH Available & Cavitation Sizer

Calculate centrifugal pump NPSH available (NPSHa), cavitation safety margin (NPSHa - NPSHr), vapor pressure, suction pipe friction losses, and Thoma cavitation parameter.

⚡ Fortran 90 Engine Double Precision (IEEE 754) ✓ ISO / ASME Validated

Centrifugal Pump NPSH Available & Cavitation Sizer

Fluid Mechanics

📊 Solver Telemetry ● ACTIVE

👁️ Views 35

⚡ Solves 28

💾 Downloads 228 📦 Fortran Code 4.5 KB

📅 Released Jun 2026

⏱️ Latency < 1 ms

💡 Hardware & Sizing Partner: Need to size a control valve or check ASME flange bolt torque for this line?

FLOWKS IEC 60534 Sizer ↗ • API 6D Valve Catalog →

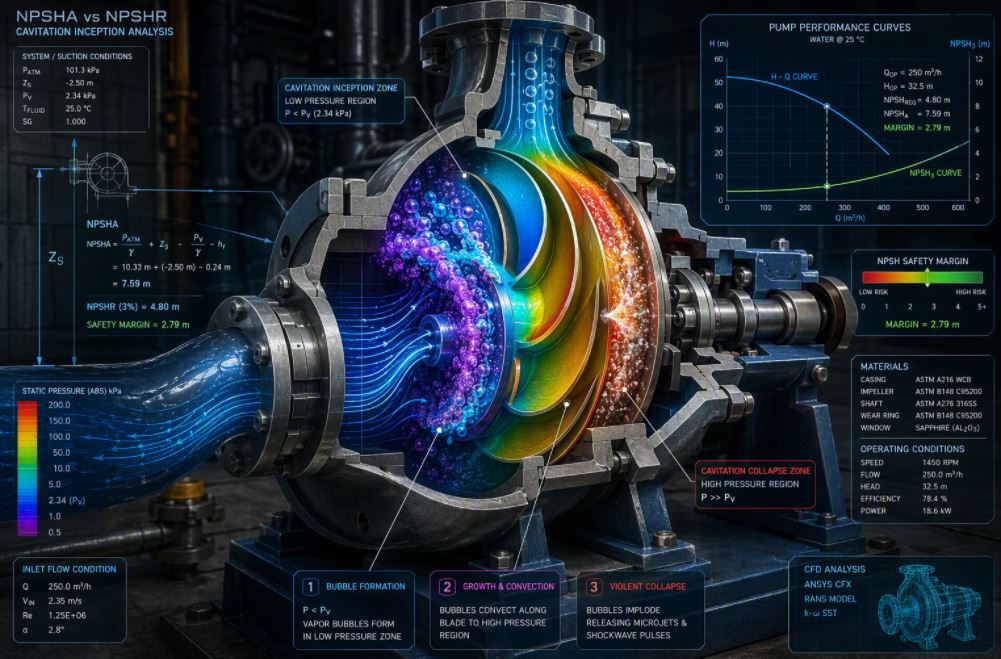

🌀 Centrifugal Pump Suction Hydraulics & Impeller Eye Cavitation Zone

Real-time visual simulation: Suction tank liquid level, line losses, and vapor bubble collapse in impeller eye

📝 Configuration & Presets

💧 Flooded Suction Water (Safe) ⚠️ River Suction Lift (-4m) 🔥 Boiler Feed Deaerator (130°C) ⛽ Volatile Gasoline Solvent

🧪 Fluid Selection & Vessel State

Pumping Fluid Medium:

Vessel / Atm Pressure P₀ [bar abs]:

Fluid Temperature [°C]:

📏 Suction Piping & Static Level

Static Suction Head z_s [m]: + Flooded, - Suction Lift

Pumping Flow Rate Q [m³/h]:

Suction Pipe ID D [mm]:

Suction Pipe Length L [m]:

Sum of Minor Loss Coefficients ∑K: Elbows, valves, strainer, inlet

⚙️ Pump Required Performance

Pump Required NPSH_r [m]: From pump manufacturer curve (3% head drop)

Pump Total Head H [m]:

Hydraulic Institute (HI 9.6.1) NPSH Formulation:
• NPSH Available: NPSH_a = (P_vessel − P_v(T)) / (ρ g) + z_s − h_loss [m]
• Cavitation Margin: ΔNPSH = NPSH_a − NPSH_r ≥ 0.6 m (or CMR ≥ 1.2 - 1.5)
• Thoma Cavitation Number: σ = NPSH_a / H_pump
• Velocity Limit: Suction velocity V should remain between 1.0 - 2.5 m/s.

📊 NPSH & Cavitation Results

Configure inputs and click Compute to view results.

📘 Calculation Methodology & Hydraulic Institute Standards

Hydraulic Institute NPSH Margin (HI 9.6.1)

NPSH margin is the difference between $NPSH_a$ and $NPSH_r$. A margin of at least $0.6 - 1.5\,\text{m}$ (or $CMR \ge 1.3$) prevents vapor cavity collapse, impeller pitting erosion, and high-frequency vibration.

Vapor Pressure & Temperature Impact

As fluid temperature rises, vapor pressure $P_v(T)$ increases exponentially according to the Antoine equation, reducing $NPSH_a$ dramatically and demanding higher suction elevation or pressurization.

Key Engineering Assumptions

Swamee-Jain / Darcy-Weisbach pipe friction model.
Sum of minor losses $\sum K$ includes strainer, foot valve, elbows, and reducer.
Applicable to water supply, chemical transfer, hydrocarbon pumps, and boiler feed deaerators.
