🧪 Non-Newtonian Yield-Pseudoplastic Hydraulics (Herschel-Bulkley)

Calculate non-Newtonian yield-pseudoplastic pipe flow using Herschel-Bulkley 3-parameter model: pipe pressure drop (kPa), wall shear stress (tau_w), solid unyielded plug core radius (rp), and generalized Reynolds number.

⚡ Fortran 90 Engine Double Precision (IEEE 754) ✓ ISO / ASME Validated

Non-Newtonian Yield-Pseudoplastic Hydraulics (Herschel-Bulkley)

Fluid Mechanics

📊 Solver Telemetry ● ACTIVE

👁️ Views 31

⚡ Solves 28

💾 Downloads 374 📦 Fortran Code 4.5 KB

📅 Released Jun 2026

⏱️ Latency < 1 ms

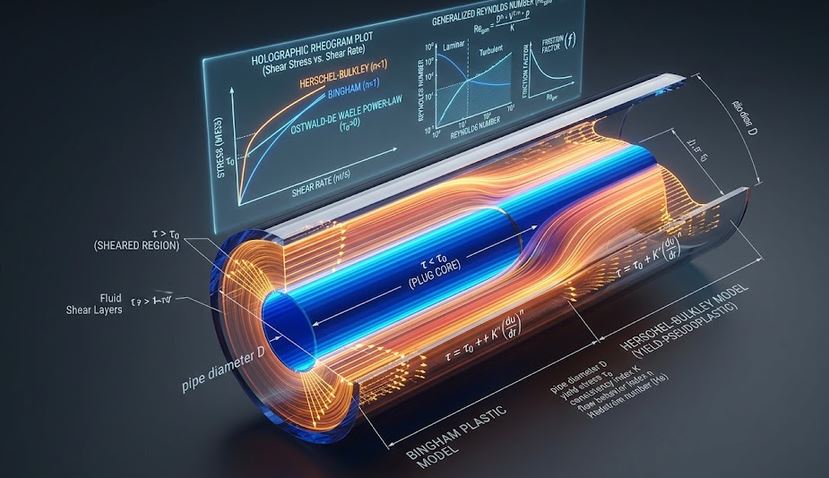

🧪 Yield-Pseudoplastic Plug Flow Velocity Profile

Real-time visual simulation: Unyielded solid plug core ($r \le r_p$) surrounded by sheared boundary layer

📝 Configuration & Presets

🛢️ Bentonite Mud (τy = 12 Pa) ⛏️ Mining Tailings Slurry 🍅 Concentrated Tomato Paste 🧴 Carbopol Hydrogel

🔬 Herschel-Bulkley Rheology Parameters

Yield Stress τ_y [Pa]:

Consistency Index K [Pa·sⁿ]:

Flow Behavior Index n: <1: Shear-thinning, =1: Bingham, >1: Dilatant

Fluid Density ρ [kg/m³]:

📏 Pipe Dimensions & Target Flow

Pipe Inner Diameter D [mm]:

Pipe Length L [m]:

Volumetric Flow Rate Q [m³/h]:

Herschel-Bulkley Constitutive Equation:
• Rheology Law: τ = τ_y + K · (γ̇)ⁿ (for τ > τ_y)
• Wall Shear Stress: τ_w = ΔP · D / (4 L) [Pa]
• Unyielded Plug Core Radius: r_p = R · (τ_y / τ_w) [mm]
• Generalized Reynolds: Re_gen = ρ · V²⁻ⁿ · Dⁿ / [ K · ((3n+1)/4n)ⁿ · 8ⁿ⁻¹ ].

📊 Hydraulics Results

Configure inputs and click Compute to view results.

📘 Calculation Methodology & Herschel-Bulkley Rheology

Unified 3-Parameter Rheology

Herschel-Bulkley is the most versatile non-Newtonian model. It reduces to Newtonian fluid ($\tau_y=0, n=1$), Power-Law fluid ($\tau_y=0$), and Bingham plastic ($n=1$).

Plug Flow Phenomenon

Near the pipe centerline, shear stress $\tau(r) \le \tau_y$, causing the fluid to move as a rigid unsheared solid cylinder (plug) at uniform maximum velocity.

Key Engineering Assumptions

Fully developed, steady isothermal laminar/transitional pipe flow.
Darby / Metzner-Reed generalized Reynolds formulations.
Applicable to drilling fluids, mining tailings, polymer pastes, and food purees.

ThermoFluidCalc Engineering Report
