๐ฐ Darby 2K & 3K Pipe Fittings Minor Head Loss
Calculate accurate minor head losses in pipe fittings using Darby 3-K method (2001): loss coefficient K, total head loss (m), pressure drop (kPa), and equivalent length (Leq) across laminar, transitional, and turbulent regimes.
โก Fortran 90 Engine
Double Precision (IEEE 754)
โ ISO / ASME Validated
Fluid Mechanics
๐ Solver Telemetry
โ ACTIVE
๐๏ธ Views
21
โก Solves
20
๐พ Downloads
422
๐ฆ Fortran Code
4.5 KB
๐
Released
Jun 2026
โฑ๏ธ Latency
< 1 ms
๐ก
Hardware & Sizing Partner: Need to size a control valve or check ASME flange bolt torque for this line?

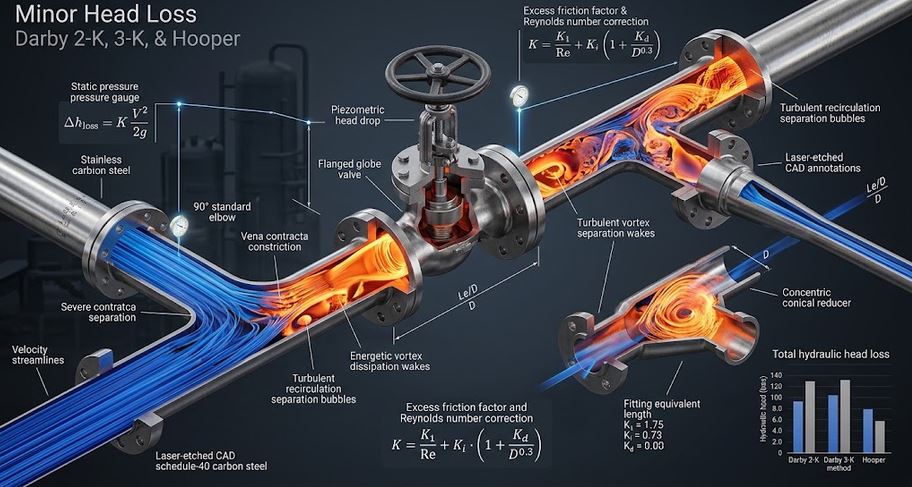

๐ฐ Pipe Fitting Flow Separation & Minor Head Loss
Real-time visual simulation: Elbow streamline curvature, secondary eddy vortices, and pressure dissipation๐ Configuration & Presets
๐ง 6ร 90ยฐ Elbows (Water)
โจ๏ธ 2ร Globe Valves (Steam)
๐ข๏ธ Swing Check (Laminar Oil)
๐ฟ 4ร Branch Tees (HVAC)
Darby (2001) 3-K Method Formulation:
โข Loss Coefficient: K3K = Kโ / Re + Kโ ยท (1 + Kd / Din0.3)
โข Head Loss: hL = K3K ยท Vยฒ / (2 g) [meters per fitting]
โข Total Pressure Drop: ฮP = N ยท ฯ ยท g ยท hL [kPa]
โข Equivalent Pipe Length: Leq = (K3K ยท D / fdarcy) ยท N.
โข Loss Coefficient: K3K = Kโ / Re + Kโ ยท (1 + Kd / Din0.3)
โข Head Loss: hL = K3K ยท Vยฒ / (2 g) [meters per fitting]
โข Total Pressure Drop: ฮP = N ยท ฯ ยท g ยท hL [kPa]
โข Equivalent Pipe Length: Leq = (K3K ยท D / fdarcy) ยท N.
๐ Fitting Loss Results
Configure inputs and click Compute to view results.
๐ Calculation Methodology & Darby 3K Standards
Darby 3K vs Classical Crane K-Factors
Classical Crane method assumes constant $K$ values for turbulent flow, causing severe underpredictions in laminar and transitional regimes. Darby 3K incorporates Reynolds scaling $K_1/Re$ and diameter scaling $K_d/D^{0.3}$.
Laminar-to-Turbulent Continuous Transition
Ensures seamless accuracy across HVAC, high-viscosity oil transfer, chemical polymer piping, and municipal potable water distribution networks.
Key Engineering Assumptions
- Commercial steel absolute roughness ($\epsilon = 0.045\,\text{mm}$).
- Darby (2001) empirical coefficients for standard ANSI/ASME fittings.
- Swamee-Jain explicit Darcy friction factor used for equivalent length determination.
